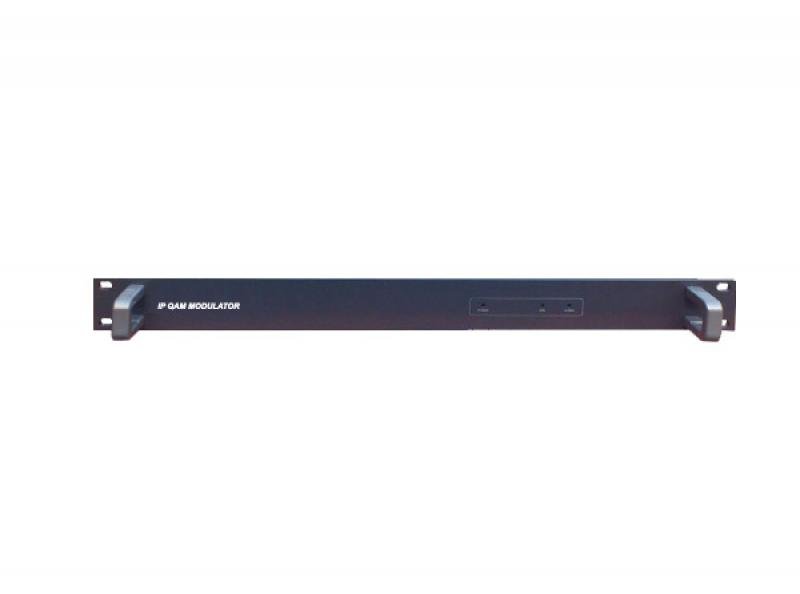

IP QAM MODULATOR 12/24/36 QAM Превземи спецификација


IP QAM Modulator is a new compact (1RU only) chassis and cost-effective QAM modulator, which is designed by according to the DVB related standards. IP QAM Modulator has 3 modules (each module supports up to 12 QAM frequencies), 10/100/1000Mbps Auto-Negotiation IP inputs, the RF output supports 16QAM~256QAM modes. The IP QAM Modulator has very convenient management interface, the user can complete all operation access through the Ethernet port on device.



Features
  • Support 3 modules in 1RU(1~3 modules optional), 12 channels of each module, up to 36 channels
  • Support TS (SPTS or MPTS) re-multiplexing function
  • Support 1.15MHz~8.05MHz bandwidth
  • Support 16QAM/32QAM/64QAM/128QAM/256QAM modulation modes
  • Provide RF output monitoring port (-20dB)
  • Adjustable Symbol Rate up to 7Mbaud
  • Max. effective bit rate up to 51.6Mbps (SR=7Mbaud, 256QAM)
  • Nominal RF Output power ≥100dBuV ( with 0~25dB adjustable attenuation range) and 48~863MHz frequency range
  • PSI/SI tables regeneration
  • Up to 128X36 PID filtering and re-mapping
  • access via Ethernet link
