QAM Modulator Превземи спецификација

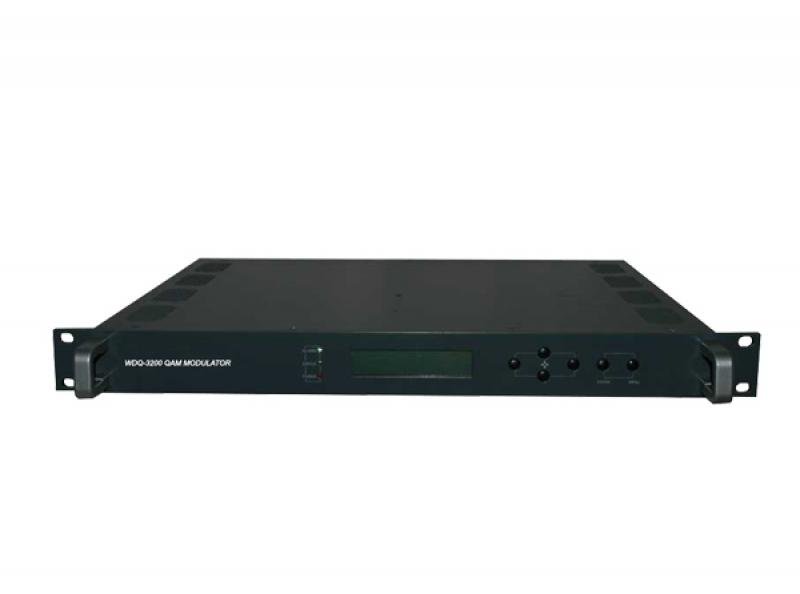

QAM Modulator is a new compact (1RU only) chassis and cost-effective QAM modulator, which is designed  according to the DVB related standards.It has one ASI input and output, the RF output supports 16QAM~256QAM modes. The QAM Modulator has very convenient management interface, the user can complete all operation via local keyboard and LCD display on device, or access through the Ethernet port on device.

Features



  • 1 ASI input and 1 ASI output
  • Up to 270Mbps bit rate for DVB-ASI input (cover both data packets and data burst)
  • 1 QAM frequency output
  • Support 1.15MHz~8.05MHz bandwidth
  • Support 16QAM/32QAM/64QAM/128QAM/256QAM modulation modes
  • provide RF output monitoring port (-20dB)
  • Adjustable Symbol Rate up to 7Mbaud
  • Max. effective bit rate up to 51.6Mbps (SR=7Mbaud, 256QAM)
  • Nominal RF Output power ≥100dBuV ( with 0~25dB adjustable attenuation range) and 48~860MHz frequency range
  • PSI/SI tables regeneration
  • PID filtering and re-mapping
  • Local keyboard control and LCD display, or access via Ethernet link
