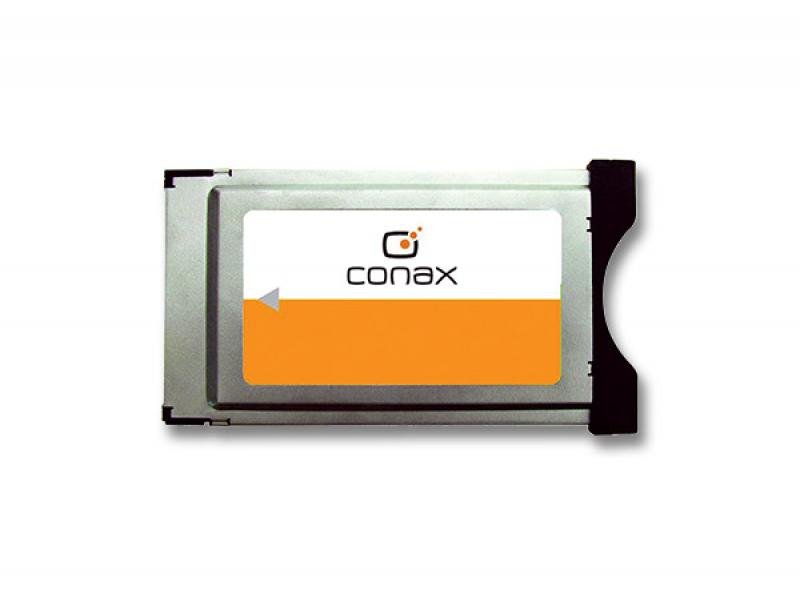

Conax CAM





Product Description:

  • The CAM can be used on IRDs, which has DVB-CI interface
  • Meticulously tested with IRDs models from Europe, the middle East, Australia, Asia
  • The CAM supports Conax CAS 4.1 enhanced secure features
  • With an authorized Conax smart card, the CAM gives access to DVB encrypted program


Chipset & TS bandwidth:

  • Based on the Embedded 32-bit CPU (ARM7TDMI)
  • Adopting advanced 0.18-micron technology
  • Flash Size: 4M Bytes
  • RAM Size: 384K Bytes
  • TS process bandwidth: Up to 96Mbps
  • Limited thermal aging test is over 24 hours


Physical & Electrical Characteristics:


  • Dimensions: Type II PCMCIA card (100mm x 58mm x 4mm)
  • Connector: 68-pin PCMCIA slot
  • Operation voltage: 4.5V ~ 5.5V
  • Operation current: <150mA
  • Low power consumption: < 600mW


Standard:

  • Plug and Play
  • Compatible with DVB-CI standard (EN50221)
  • Compatible with ETR289
  • Compatible with ISO7816 T=0 protocol, Class A
  • Compatible with MPEG-2/MPEG-4
  • Compatible with the RoHS Directive 2002/95/EC and its subsequent amendments

Descrambling & Filtering:

  • Supporting common descrambling algorithm of Europe
  • Multi services descrambling (Optional), up to 8 services descrambling
  • Hardware based section filters
  • Up to 64 configurable PID filters for filtering packet or section data
